Our Product
Flood Pan Options
FloodPan is available in two standard sizes for either side-by-side or stacked appliances. Custom-made sizes can be accommodated. Pans can also be made to suit other water damage prevention scenarios such as for under dishwashers or fridges.
Standard Single Pan
Standard Double Pan
Width × Depth × Lip Height:
30” × 33” × 1 ½” (76.2 cm × 83.82 cm × 3.81cm)
60” × 33” × 1 ½” (152.4 cm × 83.82 cm × 3.81 cm)
Centre Drainage Pipe:
2” diameter × 3” tall (5.08 cm × 7.62 cm)
2” diameter × 3” tall (5.08 cm × 7.62 cm)
Weight:
36.7 lbs (16.65 kgs)
69.8 lbs (31.66 kgs)
Best suited for:
Stacked laundry machines
Side-by-side laundry machines with steam dryers

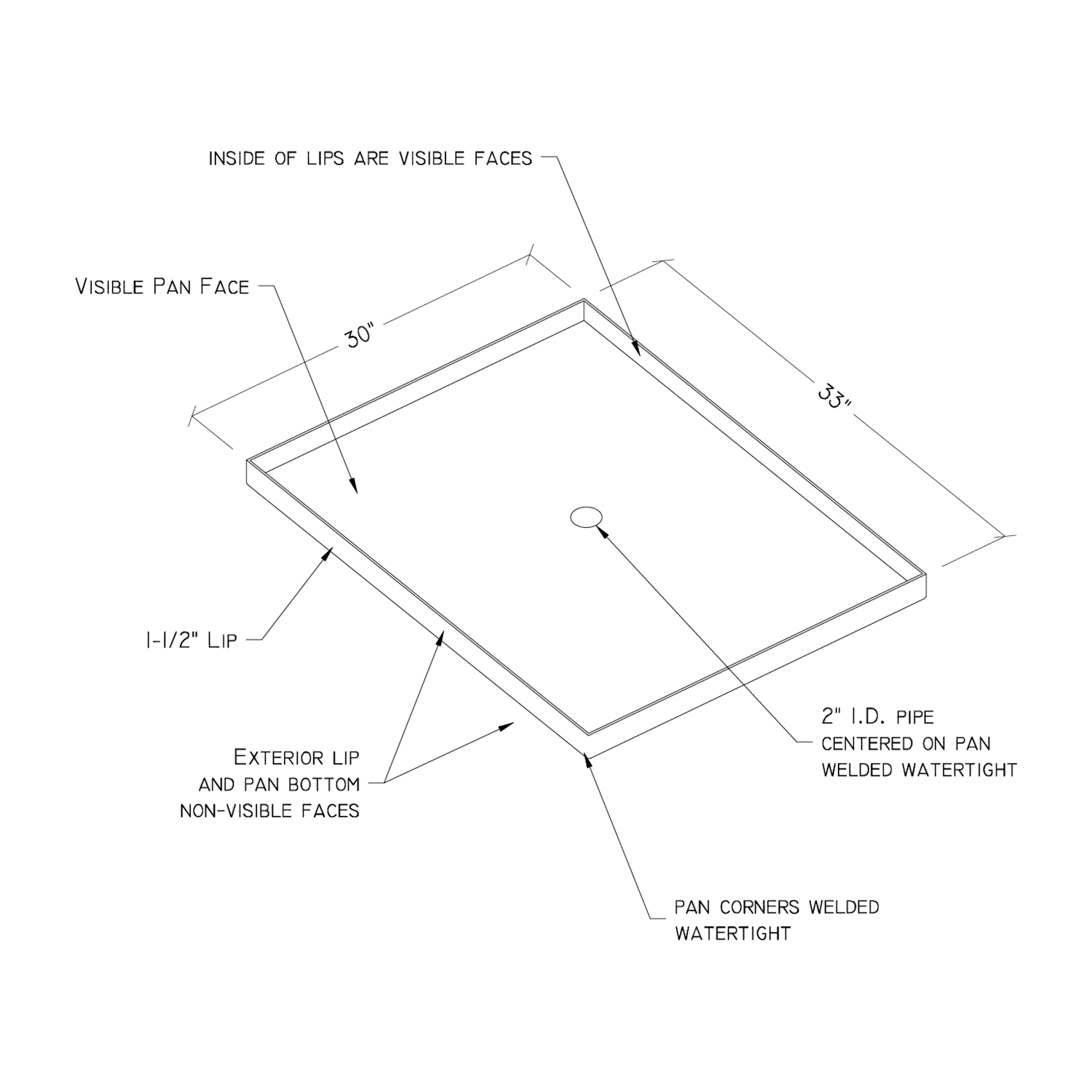

Standard Single Pan
Width × Depth × Lip Height:
30” × 33” × 1 ½” (76.2 cm × 83.82 cm × 3.81cm)
Centre Drainage Pipe:
2” diameter × 3” tall (5.08 cm × 7.62 cm)
Weight:
36.7 lbs (16.65 kgs)
Best suited for:
Stacked laundry machines
Certifications:
TBD

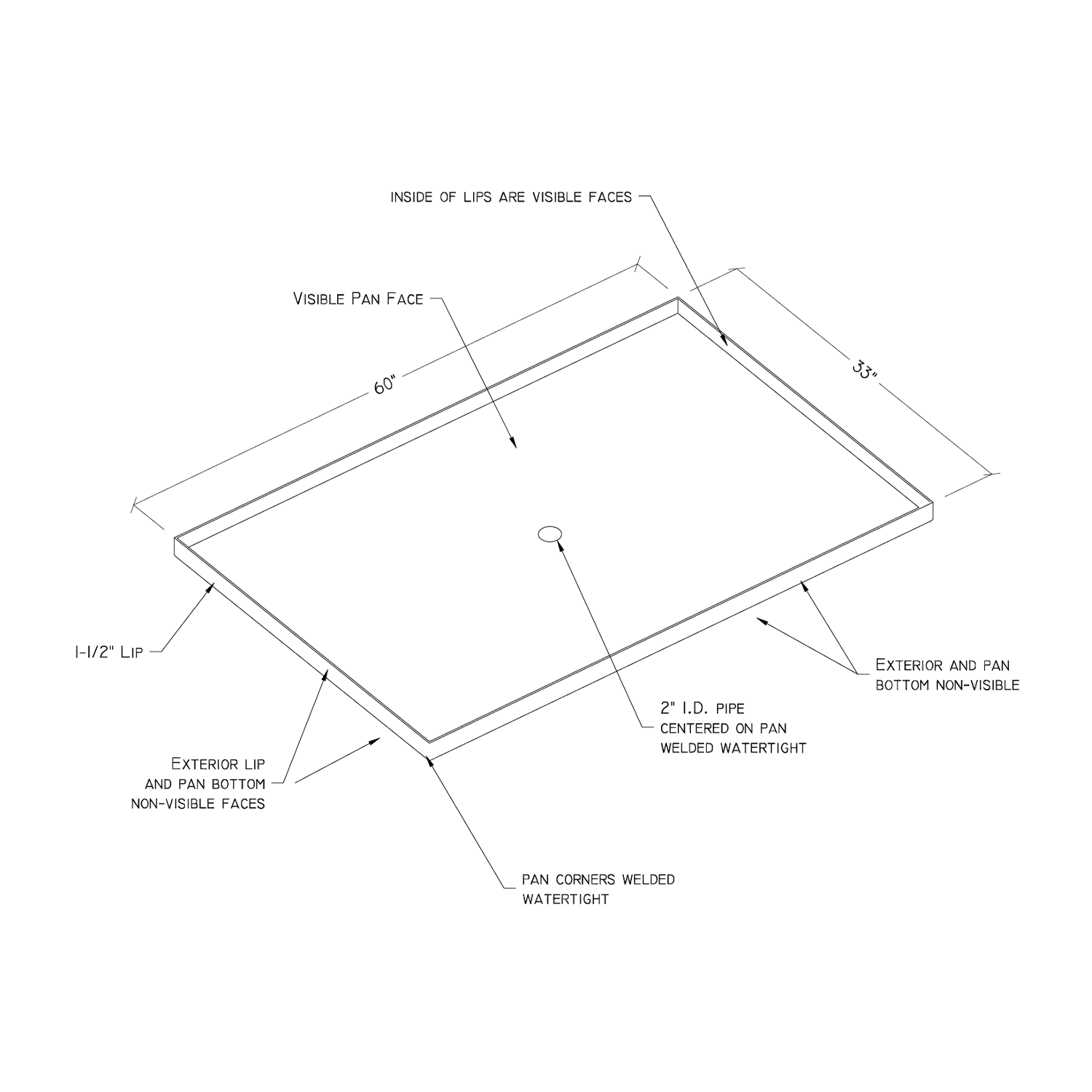

Standard Double Pan
Width × Depth × Lip Height:
60” × 33” × 1 ½” (152.4 cm × 83.82 cm × 3.81 cm)
Centre Drainage Pipe:
2” diameter × 3” tall (5.08 cm × 7.62 cm)
Weight:
69.8 lbs (31.66 kgs)
Best suited for:
Side-by-side laundry machines with steam dryers
Certifications:
TBD
Standard Single Pan
Width × Depth × Lip Height:
30” × 33” × 1 ½” (76.2 cm × 83.82 cm × 3.81cm)
Centre Drainage Pipe:
2” diameter × 3” tall (5.08 cm × 7.62 cm)
Weight:
36.7 lbs (16.65 kgs)
Best suited for:
Stacked laundry machines
Certifications:
TBD
Standard Double Pan
Width × Depth × Lip Height:
60” × 33” × 1 ½” (152.4 cm × 83.82 cm × 3.81 cm)
Centre Drainage Pipe:
2” diameter × 3” tall (5.08 cm × 7.62 cm)
Weight:
69.8 lbs (31.66 kgs)
Best suited for:
Side-by-side laundry machines with steam dryers
Certifications:
TBD
